Lift and Tilt Scissor Tables

Supplier: Vestil

View more Product Info

FOB: Midwest Warehouse

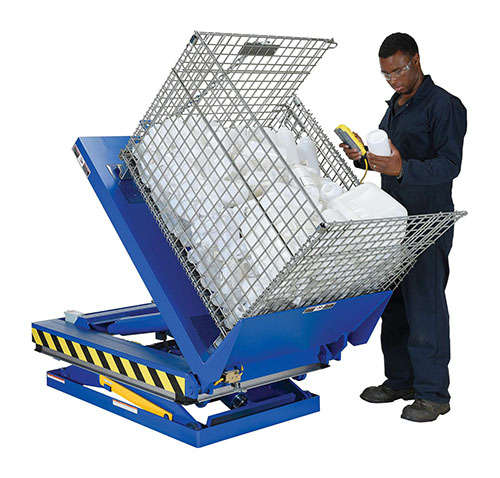

Vestil Lift and Tilt Scissor Tables perform both lifting and tilting operations.

Vestil Lift and Tilt Scissor Tables offer:

45° and 90° tilt standard.
Restraining chain and 12" high lip to keep the load in place during tilting.
Optional accordion skirting available for both the lifting and tilting portions of the table, contact Material Flow.

Safety features:

Electric toe guard to protect worker from pinch points during lowering of table.
Velocity fuses to hold platform position in event of hose or fitting failure.
4 push-button hand pendant control on an 8' coil cord.
Upper limit switch to stop travel at maximum height, reducing motor wear.
Maintenance prop.

Model Info

8 models for Lift and Tilt Scissor Tables

Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	Description	Platform Dimensions	Capacity	Raised Height	Lowered Height	Overall Dimensions	Weight	Price Ea.
EHLTT-3648-2-47	45° end tilt	36" W x 48" L	2000 lbs.	47"	11"	36" W x 56" L	1204 lbs.	$6025.00
EHLTT-3648-3-47	45° end tilt	36" W x 48" L	3000 lbs.	47"	11"	36" W x 56" L	1299 lbs.	$6890.00
EHLTT-4848-3-47	45° end tilt	48" W x 48" L	3000 lbs.	47"	11"	48" W x 56" L	1251 lbs.	$7235.00
EHLTT-3648-4-47	45° end tilt	36" W x 48" L	4000 lbs.	47"	11"	36" W x 56" L	1206 lbs.	$7735.00
EHLTT-4848-4-47	45° end tilt	48" W x 48" L	4000 lbs.	47"	11"	48" W x 56" L	1282 lbs.	$8269.00
EHLTT-4848-5-47	45° end tilt	48" W x 48" L	5000 lbs.	49"	13"	48" W x 56" L	1482 lbs.	$12065.00
EHLTTS-3654-2-48	45° side link tilt	36" W x 54" L	2000 lbs.	48"	12"	38" W x 54" L	1238 lbs.	$6472.00
EHLTTS-3654-4-48	45° side link tilt	36" W x 54" L	4000 lbs.	48"	12"	38" W x 54" L	1500 lbs.	$8059.00

Difference between Cart and Quote

1 Option Available for Lift and Tilt Scissor Tables

Lift and Tilt Scissor Tables Option Image

Options for Lift and Tilt Scissor Tables

FOB Midwest Warehouse

Model No.	Description	Weight	Price Ea.	Qty
FC-4	Four pedal foot control (lift and tilt products)	6 lbs.	$303.00
EHLTT-ROTARY-WMPB	Air/oil power w/pneumatic push-button	36 lbs.	$4,026.00
