Electric Hydraulic Scissor Lift Tables 4000 lbs Capacity - Standard Ship

Manufacturer: Vestil

FOB: Midwest Warehouse
View More Product Info

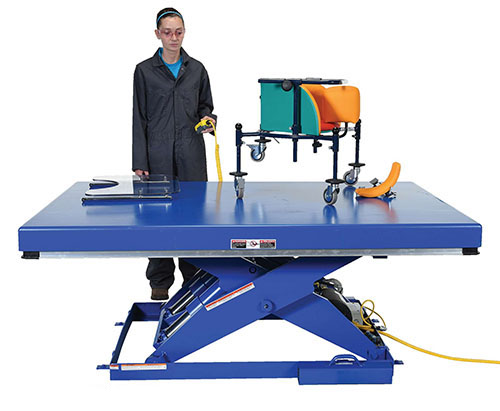

Full-featured Vestil Electric Hydraulic Scissor Lift Tables are used by all types of manufacturing and warehouse facilities. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3,000 psi hydraulic component rating.

Safety Features:

  • Electric toe guard to protect pinch points during lowering of the table
  • Internal brass velocity fuse to maintain platform height in event of hose or fitting failure
  • 24V AC push-button hand control
  • Maintenance prop
  • Upper travel limit switch to stop table at maximum height


Model number format: EHLT - (width)(length) - capacity - raised height.

Note: * in the table below denotes 6.5 HP 208-230/460V 3 phase (externally mounted)

  • Model Info

16 Models Available for Electric Hydraulic Scissor Lift Tables 4000 lbs Capacity - Standard Ship

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Platform Width Platform Length Capacity Raised Height Lowered Height Travel Time Weight Price Ea. Qty
EHLT-2448-4-43 24" 48" 4000 lbs. 43" 7" 22 seconds 980 lbs. $3985.00
EHLT-2472-4-43 24" 72" 4000 lbs. 43" 7" 22 seconds 980 lbs. $3985.00
EHLT-4848-4-43 48" 48" 4000 lbs. 43" 7" 22 seconds 980 lbs. $3985.00
EHLT-4872-4-43 48" 72" 4000 lbs. 43" 7" 22 seconds 980 lbs. $3985.00
EHLT-3664-4-56 36" 64" 4000 lbs. 56" 8" 32 seconds 1271 lbs. $4545.00
EHLT-3696-4-56 36" 96" 4000 lbs. 56" 8" 32 seconds 1271 lbs. $4545.00
EHLT-4864-4-56 48" 64" 4000 lbs. 56" 8" 32 seconds 1271 lbs. $4545.00
EHLT-4896-4-56 48" 96" 4000 lbs. 56" 8" 32 seconds 1271 lbs. $4545.00
EHLT-4896-4-68 48" 96" 4000 lbs.* 68" 8" 26 seconds 1848 lbs. $6808.00
EHLT-48120-4-68 48" 120" 4000 lbs.* 68" 8" 26 seconds 1848 lbs. $6808.00
EHLT-7296-4-68 72" 96" 4000 lbs.* 68" 8" 26 seconds 1848 lbs. $6808.00
EHLT-72120-4-68 72" 120" 4000 lbs.* 68" 8" 26 seconds 1848 lbs. $6808.00
EHLT-48120-4-82 48" 120" 4000 lbs.* 82" 11" 26 seconds 3217 lbs. $7712.00
EHLT-48144-4-82 48" 144" 4000 lbs.* 82" 11" 26 seconds 3217 lbs. $7712.00
EHLT-72120-4-82 72" 120" 4000 lbs.* 82" 11" 26 seconds 3217 lbs. $7712.00
EHLT-72144-4-82 72" 144" 4000 lbs.* 82" 11" 26 seconds 3217 lbs. $7712.00
