Vestil EHLTD-4848-2-70 Double Scissor Lift Table

Double Scissor Lift Tables

Supplier: Vestil

FOB: Midwest Warehouse

Achieve the extra reach you're looking for with these Double Scissor Lift Tables. These full-featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities.

Safety Features:

Electric toe guard to protect pinch points during lowering of the table.
Safety velocity fuse to stop falling due to loss of hydraulic pressure.
24VAC push-button hand control.
Maintenance prop.
Upper travel limit switch to stop table at maximum height reducing motor wear.

Other Features:

2 HP, 460V, 3-phase, 60 Hz totally enclosed motor standard.
Other voltages available.
3000 psi hydraulic component rating.

Model number format: EHLTD - (width)(length) - capacity - raised height.

Model Info

1 model for Double Scissor Lift Tables

Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	Platform Width	Platform Length	Capacity	Raised Height	Lowered Height	Travel Time	Weight	Price Ea.	Qty
EHLTD-4848-2-70	48"	48"	2000 lbs.	70"	10"	16 seconds	1250 lbs.	$7020.00

Difference between Cart and Quote

4 Options Available for Double Scissor Lift Tables

Radio Remote Control

FOB: Midwest Warehouse

View More Product Info

Put the power in your hands with the Radio Remote Control.

This lightweight, two-button, remote control gives you the freedom to control your scissor table from a range of up to 150 feet.
Unit is also available in a four-button model for lift and tilt tables.
The remote control is 4" wide x 6" high x 2" thick.

Approved to meet part 15 of the Federal Communications Code. Designed to prevent crosstalk and false triggering from stray radio frequency.

Model No.	Description	Weight	Price Ea.	Qty
RRC-2PB	2-button control (lift-hold-lower circuit)	1 lb.	$1,251.00
RRC-4PB	4-button control (lift and tilt circuit)	1 lb.	$1,251.00

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

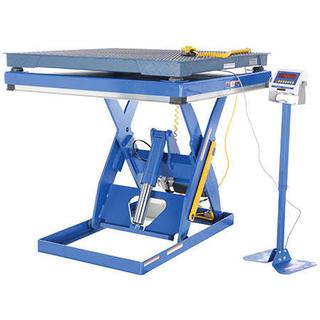

Integral Scale for Scissor Tables

FOB: Midwest Warehouse

View More Product Info

Vestil Integral Scale for Scissor Tables offer:

Validate number of pieces or parts
Know exactly how much weight is on your table
Bolt-on corner retainers
No holes or bolting required
Installs and removes in seconds
Expedite your shipping and palletizing process
Available in 36" x 36", 48" x 48", and 48" x 60" platform tops (rests on top of table)
Adds approximately 3-1/2" to overall height
Scale functions: zero weight and tare weight
Weighing units: pounds or kilograms
Indicator mounted on pedestal, 110VAC
Scale capacity, maximum 5,000 lb.
Scissor table not included, select next higher capacity scissor table

Model No.	Use With	Weight	Price Ea.
EHLT-SCALE	Series EHLT lift table	295 lbs.	$1,986.00
EHLTD-SCALE	Series EHLTD double lift table	295 lbs.	$2,099.00
EHLTSD-SCALE	Series EHLTSD shorty double lift table	295 lbs.	$1,986.00
PST-SCALE	Series PST portable lift table	295 lbs.	$2,117.00

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Programmable Height

FOB: Midwest Warehouse

View More Product Info

Eliminate unnecessary bending and "land control jogging" by presetting multiple working heights at the touch of a button.

Set height function: Programmable up to 4 preset heights
Incremental height adjustment for jogging lift at preset increments
Raise/lower push button on the keypad
Fully integrated controller with LCD display
A 15-button keypad on the panel display
Excellent for repeat repositioning applications
Hybrid technology linear sensor is used to control positions at any preset height
Scissor Table not included

Model No.	Use With	Weight	Price Ea.
EHLT-PROGRAM	Series EHLT lift table	295 lbs.	$1,881.00
EHLTD-70-PROGRAM	Series EHLTD double lift table (up to 70" lift height)	295 lbs.	$1,787.00
EHLTG-PROGRAM	Series EHLTG ground lift table	295 lbs.	$1,787.00

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

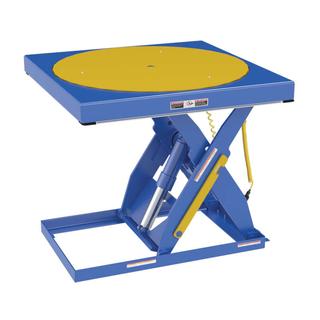

Manual Built-In Carousel for Scissor Tables

FOB Midwest Warehouse

View More Product Info

Position pallets, boxes or crates without ever stepping around the table. This sleek flush mounted carousel smoothly rotates 360°.

Vestil Manual Built-In Carousel for Scissor Tables offers:

Easy to use operation
Carousel adds 1" to scissor table service range
Carousel diameter is 45"
Platform size must be 48" x 48" minimum
Rotate option de-rates table capacity by 300 lbs.
Maximum capacity is 4000 lbs.
Scissor table not included
Option for new table purchase only
Other size carousels available

Model No.	Use With	Weight	Price Ea.
EHLT-ROTATE	Series EHLT lift table	350 lbs.	$1,140.45
EHLTD-ROTATE	Series EHLTD double lift table	350 lbs.	$1,231.00
EHLTX-ROTATE	Series EHLTX low profile lift table	350 lbs.	$1,197.00
PST-ROTATE	Series PST portable lift table	350 lbs.	$1,270.00
AHLT-ROTATE	Series AHLT air hydraulic lift table	350 lbs.	$1,140.45

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.
