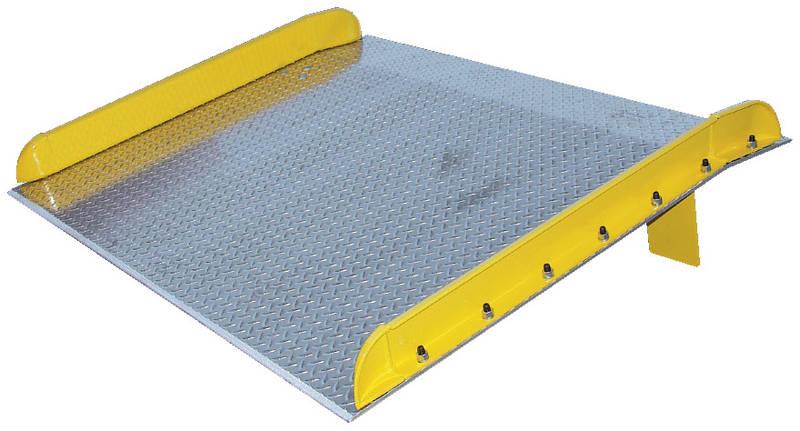

Aluminum Truck Dock Board with Steel Safety Curbs - 20,000 lb. Capacity

Manufacturer: Vestil

Volume Discounts Apply

FOB: Midwest warehouse

Vestil Aluminum Truck Dock Board with Steel Safety Curbs - 20,000 lb. Capacity - offers:

  • Designed for portability and safety
  • Deck is made of tough high strength aluminum tread plate
  • The edges are beveled for smooth entry and exit
  • Safety curbs are yellow baked-in powder coated for toughness and are constructed of steel with cast tapered ends
  • Steel legs are bolted for increased durability
  • Legs are located 11" from the beveled edge
  • Legs are canted for easier fork truck portability
  • The bend is 11° and 9" from the beveled edge
  • Manufactured in compliance with OSHA
  • When using three-wheeled fork trucks, order dockboard with capacity at least four times the lifting capacity of fork truck


Vestil model numbers in red ship within 48 hours

If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

9 Models Available for Aluminum Truck Dock Board with Steel Safety Curbs - 20,000 lb. Capacity

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Width Length Height Difference 11° and 19% Weight Price Ea. Qty
TAS-20-6030 60" 30" 4" 100 lbs. $599.31
TAS-20-6036 60" 36" 5" 122 lbs. $608.33
TAS-20-6048 60" 48" 7" 178 lbs. $830.46
TAS-20-6060 60" 60" 10" 230 lbs. $1210.66
TAS-20-6072 60" 72" 12" 275 lbs. $1441.77
TAS-20-7230 72" 30" 4" 115 lbs. $674.37
TAS-20-7236 72" 36" 5" 138 lbs. $683.35
TAS-20-7248 72" 48" 7" 202 lbs. $949.51
TAS-20-7260 72" 60" 10" 287 lbs. $1380.75
All items in RED ship express from our warehouses.

1 Option Available for Aluminum Truck Dock Board with Steel Safety Curbs - 20,000 lb. Capacity

Option:Aluminum Dock Board Accessories

FOB Midwest Warehouse

Model No. Description Price Ea. Qty
LC48-66 Lifting Chains 48" W - 66" W $62.00
LC72-84 Lifting Chains 72" W -84" W $70.00
SSL Sliding Span Locks (BTA only) $69.00
WH Dockboard Wheel Kit (125 lb capacity) $45.00
HDL Dockboard Handle Kit $18.95
SP Span Pins and Holes (4 holes per side) $75.00
HOLE Extra Span Holes $6.00
PIN Extra Span Pins $5.00
ALL Leverlift $67.00
All items in RED ship express from our warehouses.

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.
