Adjustable Steel Gantry Cranes - 6K to 10K lbs

Supplier: Vestil

FOB: Midwest Warehouse

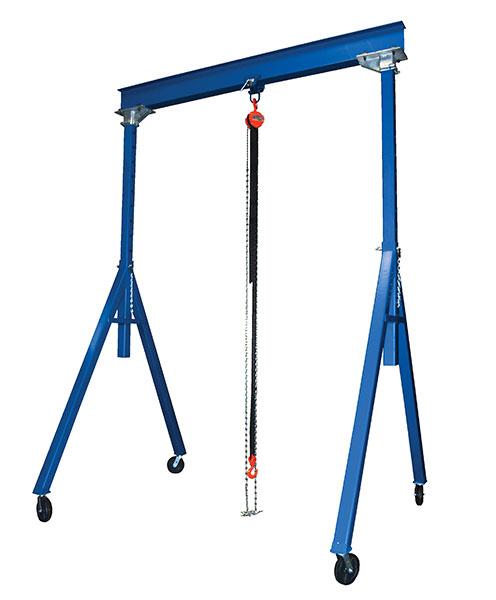

Vestil Adjustable Steel Gantry Cranes are designed for positioning materials along the beam's length. Facilitate easy mobility from one area to another with four 8" swivel casters with four-position locks.

Features:

6K-8K models have phenolic casters, 10K model has steel casters.
Ratchet for easy one-person height adjustment.
Height is adjustable in 6" increments.
Do not move units while loaded.
Painted blue finish.
Designed for semi-permanent or permanent applications.
Requires assistance from fork truck to set up.

Note: Usable distance between uprights is overall beam length minus 12". Usable trolley travel length is overall beam length minus 30".

Model Info

22 models for Adjustable Steel Gantry Cranes - 6K to 10K lbs

Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	Capacity	Overall Beam Length / Height	Flange Width	Under I-Beam Usable Height	Base Width	Weight	Price Ea.
AHS-6-10-16	6000 lbs.	10' L / 8-1/8" H	4"	10'7" to 16'1"	89-3/4"	1022 lbs.	$3815.00
AHS-6-15-7	6000 lbs.	15' L / 10-1/8" H	4"	5'1" to 7'1"	47-5/8"	810 lbs.	$2802.00
AHS-6-15-9	6000 lbs.	15' L / 10-1/8" H	4"	6'1" to 9'1"	59-5/8"	894 lbs.	$2877.00
AHS-6-15-10	6000 lbs.	15' L / 10-1/8" H	4"	6'7" to 10'1"	65-1/2"	932 lbs.	$2977.00
AHS-6-15-12	6000 lbs.	15' L / 10-1/8" H	4"	7'7" to 12'1"	77-3/8"	1017 lbs.	$2885.00
AHS-6-15-14	6000 lbs.	15' L / 10-1/8" H	4"	8'7" to 14'1"	89-3/4"	1108 lbs.	$3676.00
AHS-6-20-12	6000 lbs.	20' L / 12-5/16" H	6-1/2"	7'7" to 12'1"	77-3/8"	1413 lbs.	$3748.00
AHS-6-20-14	6000 lbs.	20' L / 12-5/16" H	6-1/2"	8'7" to 14'1"	89-3/4"	1513 lbs.	$4044.00
AHS-6-20-16	6000 lbs.	20' L / 12-5/16" H	6-1/2"	10'7" to 16'1"	89-3/4"	1532 lbs.	$4750.00
AHS-8-10-12	8000 lbs.	10' L / 8-1/8" H	4"	7'7" to 12'1"	76-1/2"	933 lbs.	$3056.00
AHS-8-10-14	8000 lbs.	10' L / 8-1/8" H	4"	8'6" to 14'	88-1/4"	1050 lbs.	$3263.00
AHS-8-10-16	8000 lbs.	10' L / 8-1/8" H	4"	10'6" to 16'	88-1/4"	1121 lbs.	$4007.00
AHS-8-15-7	8000 lbs.	15' L / 10-1/8" H	4"	5' to 7'	45-3/4"	804 lbs.	$2972.00
AHS-8-15-9	8000 lbs.	15' L / 10-1/8" H	4"	6' to 9'	57-3/4"	905 lbs.	$3056.00
AHS-8-15-10	8000 lbs.	15' L / 10-1/8" H	4"	6'6" to 10'	63-3/4"	960 lbs.	$3157.00
AHS-8-15-12	8000 lbs.	15' L / 10-1/8" H	4"	7'7" to 12'1"	76-1/2"	1044 lbs.	$3357.00
AHS-8-15-14	8000 lbs.	15' L / 10-1/8" H	4"	8'6" to 14'	88-1/4"	1132 lbs.	$3357.00
AHS-8-15-16	8000 lbs.	15' L / 10-1/8" H	4"	10'6" to 16'	88-1/4"	1194 lbs.	$3645.00
AHS-8-20-12	8000 lbs.	20' L / 12-5/16" H	6-1/2"	7'7" to 12'1"	76-1/2"	1406 lbs.	$4176.00
AHS-8-20-14	8000 lbs.	20' L / 12-5/16" H	6-1/2"	8'6" to 14'	88-5/16"	1514 lbs.	$4437.00
AHS-8-20-16	8000 lbs.	20' L / 12-5/16" H	6-1/2"	10'6" to 16'	88-1/4"	1582 lbs.	$5180.00
AHS-10-15-10	10000 lbs.	15' L / 12-1/8" H	4"	6'6" to 10'	64-1/2"	1352 lbs.	$5164.00

All items in RED ship express from our warehouses.

Difference between Cart and Quote

1 Option Available for Adjustable Steel Gantry Cranes - 6K to 10K lbs

Adjustable Steel Gantry Cranes - 6K to 10K lbs Option Image

Adjustable Steel Gantry Crane Options

FOB Indiana Warehouse

Total Locking Casters AHS-2-4-TLC

Set of four.
For 2,000 and 4,000 lb. capacity cranes only.

Total Locking Casters AHS-6-8-TLC

Set of four.
For 6,000 and 8,000 lb. capacity cranes only.

8"x2" V-Groove Casters AHS-2/4-V

Set of four.
For 2,000 and 4,000 lb. capacity cranes.

8"x3" V-Groove Casters AHS-6/8-V

Set of four.
For 6,000 and 8,000 lb. capacity cranes only.

AHS-KIT Come-A-Longs

For height adjustment (not for lifting).
Includes 2 cable pullers – one for each end of the crane.
With a fixed hook and cable hook.

Model No.	Description	Price Ea.
AHS-2/4-TLC	Total locking casters (2000 and 4000 lbs. capacity cranes only) (set of 4)	$366.00
AHS-6/8-TLC	Total locking casters (6000 and 8000 lbs. capacity cranes only) (set of 4)	$796.00
AHS-2/4-V	8" x 2" V-Groove Casters for 2000 and 4000 lbs. units (set of 4)	$363.00
AHS-6/8-V	8" x 3" V-Groove Casters for 6000 and 8000 lbs. units (set of 4)	$1,047.00
AHS-KIT	(2) Come-A-Longs for height adjustment (not for lifting)	$125.00
AHS-STLO	Stationary leg option, set of (4) four (factory installed) --not compatible with AHS-10-15-10	$222.00
AHS-STLO-RF	Stationary leg option, set of (4) four (field installed) --not compatible with AHS-10-15-10	$295.00
