Adjustable Spreader Beams

Supplier: Vestil

Volume Discounts Apply
FOB: Midwest Warehouse

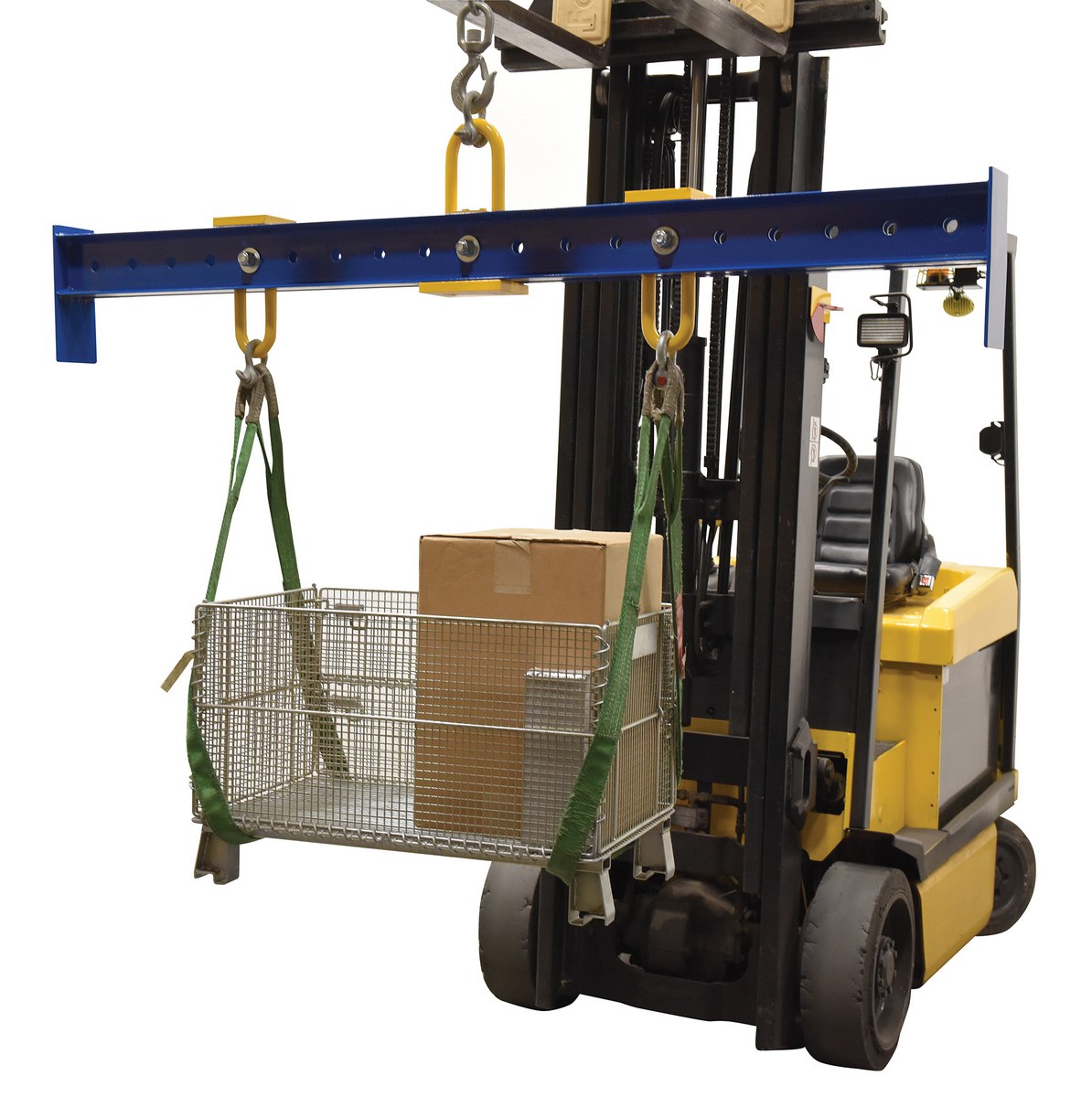

Lift uneven loads and keep them level with increased safety. Includes two lower bails and one upper bail. Adjust bails in 4" increments. The bails slide between two 5" high C-Channels (8" high model SBM-80). Meets ASME B30.20-1993 standard. Baked-in powder-coated finish for added toughness.

The SBM-BFB-100-10 models lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two (2) 5" high C-Channels. Meets ASME B30.20-1993 standard. Baked-in powdercoated toughness. Polyester lifting slings sold separately.

Model Info

3 models for Adjustable Spreader Beams

Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	Min Spread	Max Spread	Upper Bail	Lower Bail	Headroom	Capacity	Weight	Price Ea.
SBM-25	8"	6'	2-1/2" W x 5" L	1-1/2" W x 4-1/2" L	15-3/4"	2500 lbs.	146 lbs.	$583.00
SBM-40	16"	6'	3" W x 5-1/2" L	2" W x 4" L	16-1/4"	4000 lbs.	170 lbs.	$717.00
SBM-80	8"	8'	4" W x 7-1/4" L	3" W x 5-1/4" L	23-1/4"	8000 lbs.	350 lbs.	$1108.00

All items in RED ship express from our warehouses.

Difference between Cart and Quote

1 Option Available for Adjustable Spreader Beams

Additional Bails for Adjustable Spreader Beams

FOB Midwest Warehouse

Add additional bails to help lift awkward loads.

Adjustable design.
Solid steel construction.
Durable, powder-coat finish.

Model No.	Description	Weight	Price Ea.
SM-LB-25	Additional lower bail for SBM-25	10 lbs.	$108.00
SM-UB-25	Additional upper bail for SBM-25	11 lbs.	$109.00
SM-LB-40	Additional lower bail for SBM-40	16 lbs.	$109.00
SM-UB-40	Additional upper bail for SBM-40	17 lbs.	$110.00
SM-LB-80	Additional lower bail for SBM-80	24 lbs.	$110.00
SM-UB-80	Additional upper bail for SBM-80	33 lbs.	$111.00
